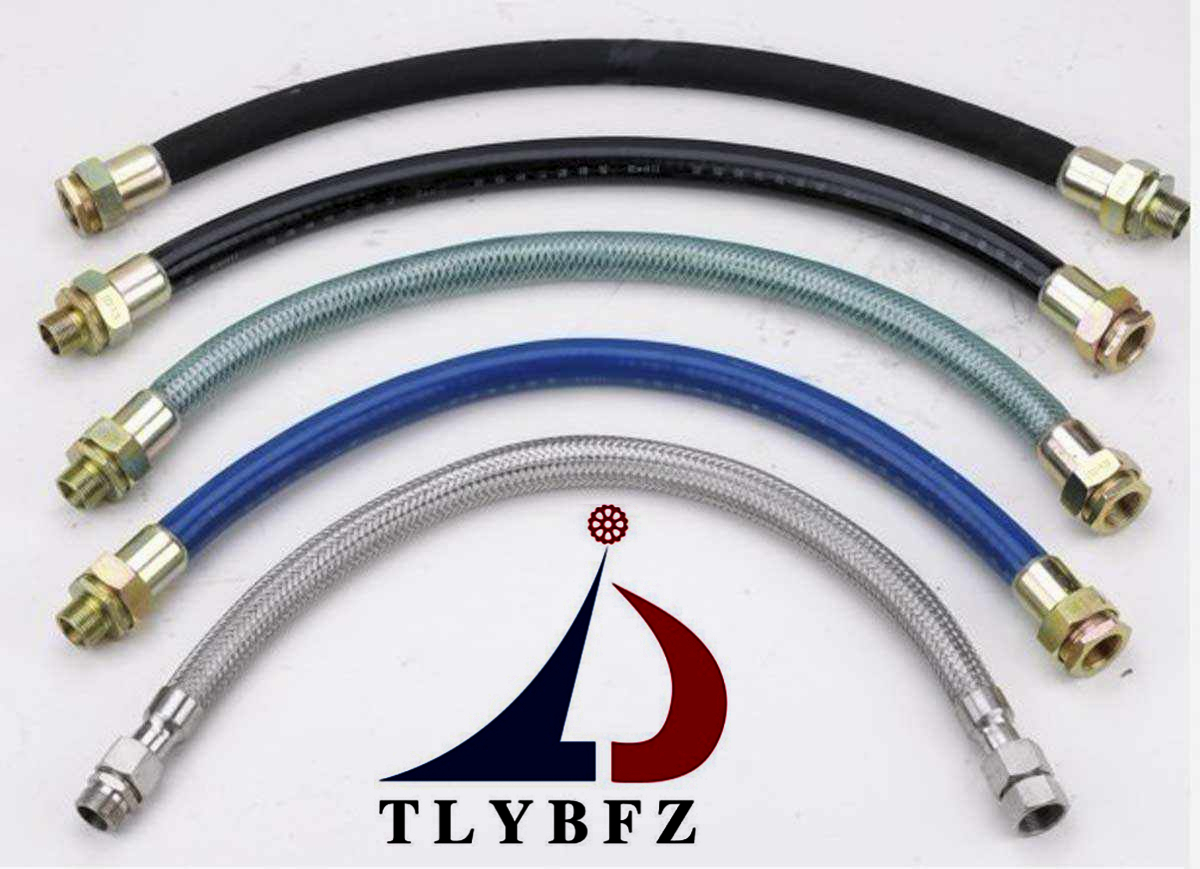

防爆繞線連接管
產品規格：
上架時間：2023-3-7 19:01:55
點擊數：1182
產品材質：￥不銹鋼、橡塑、鋁塑、橡膠 /PVC
防水等級：IP66 / IP68
防爆等級：防爆
產品品牌：TLYBFC / TLYBFZ/ 進口

商品描述：

適應范圍：

1、適用于爆炸性氣體環境1區、2區；

2、適用于可燃性粉塵環境20區、21區、22區；

3、適用于ⅡA、ⅡB、ⅡC級爆炸性氣體環境；

4、適用于溫度組別為T1—T6的環境；

5、適用于石油采煉、儲存、化工、醫藥、紡織、印染、軍工及軍事設施等爆炸性危險環境。

產品特點：

1、具有耐燃、耐腐蝕、耐水、耐老化、撓性良好、結構牢固、工作可靠等優點；

2、撓性管長度，螺紋尺寸可根據用戶需要特殊加工。如NPT螺紋，公制螺紋等。

注：標注螺紋規格時并應注明內外螺紋,如：BNG-700×G3/4″(內)/G1″(外)意義為長度為700，一端為內螺紋G3/4″，一端為外螺紋G1″的橡膠護套撓性連接管；

3、執行標準：GB3836.1-2000、GB3836.2-2000。

技術參數：

產品特點 Features

TLYBFC-BNG-Ⅰ(橡塑護套) Rubber sheld	TLYBFC-BNG-Ⅱ(不銹鋼) Stainless steel	TLYBFC-BNG-Ⅲ(鋼絲編織) Steel wire knit
1.本產品由碳鋼制成的內外螺紋接頭、金屬軟管外包PVC管等組成 1. It*s composed of thread connectors and metal flexible pipe weared with PVC pipe, connectors are made of carbon steel with good quality.	1.本產品由不銹鋼制成的內外螺紋接頭、不銹鋼波紋管外不銹鋼網管等組成 1.this product is made up of the in-out thread joint of excellent stainless steel, stainless ripple pipe casing with stainless pipeline.	1.本產品由碳鋼制成的內外螺紋接頭、內襯鋼絲網管加強的橡膠管等組成 1.It*s composed of inlet and outlet connector, rubber pipe that lined with stainless steel net pipe.
2.具有無毒無味、耐油、耐酸、耐腐蝕、耐磨、耐老化、防水、阻燃、撓性良好等優 點。 2.It has no poison and taste, it*s with oil, acid, corrosion, wearing and aging resistance water-proof flame-proof and good flexible functions.	2.具有耐油、耐腐蝕、耐磨、耐老化、防水、阻燃、撓性良好等優點。 2.It*s with oil corrosion-resistance aging wearing resistance, water and flame proof and good flexible function.	2.具有耐油、耐酸、耐腐蝕、耐磨、耐老化、防水、阻燃、撓性良好等優點。 2.It*s with oil corrosion-resistance aging wearing resistance, water and flame proof and perfect flexible function.

注：可根據用戶需要特殊加工長度及螺紋等。 The length and thread can be made on request.

主要技術參數 Main technical parameters

型號
Type

管通徑
Pipe diameter

接頭管螺紋(G")
Connecting pipe
thread

長度
Length

彎曲半徑下限
Min bend radius

防爆標志
Ex-mark

TLYBFC-BNG-□15×700
TLYBFC-BNG-□15×1000
TLYBFC-BNG-□20×700
TLYBFC-BNG-□20×1000
TLYBFC-BNG-□25×700
TLYBFC-BNG-□25×1000
TLYBFC-BNG-□32×700
TLYBFC-BNG-□32×1000
TLYBFC-BNG-□40×700
TLYBFC-BNG-□40×1000
TLYBFC-BNG-□50×700
TLYBFC-BNG-□50×1000
TLYBFC-BNG-□70×700
TLYBFC-BNG-□70×1000
TLYBFC-BNG-□80×700
TLYBFC-BNG-□80×1000
TLYBFC-BNG-□100×700
TLYBFC-BNG-□100×1000
TLYBFC-BNG-□100×1400

15
15
20
20
25
25
32
32
40
40
50
50
70
70
80
80
100
100
100

G1/2"
G1/2"
G3/4"
G3/4"
G1"
G1"
G1 1/4"
G1 1/4"
G1 1/2"
G1 1/2"
G2"
G2"
G2 1/2"
G2 1/2"
G3"
G3"
G4"
G4"
G4"

700
1000
700
1000
700
1000
700
1000
700
1000
700
1000
700
1000
700
1000
700
1000
1400

80
80
110
100
145
145
180
180
210
210
250
250
350
350
400
400
500
500
500

Exd Ⅱ等效于
Ⅱ 2G Exd Ⅱ(歐標)

ExeⅡ等效于
Ⅱ2G ExeⅡ(歐標)

DIP A20等效于
Ⅱ1D ExtD A20(歐標)
